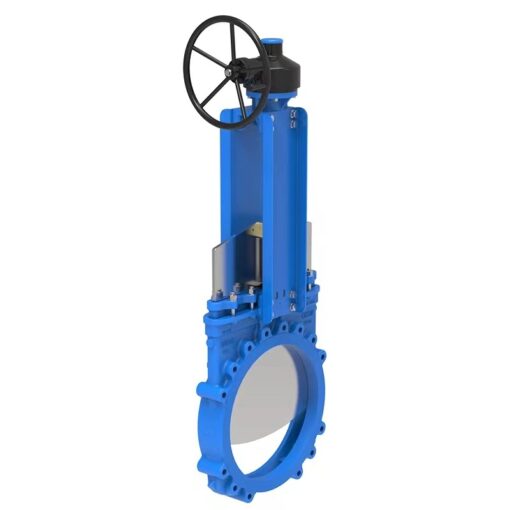

BI-DIRECTIONAL HIGH PRESSURE WAFER STYLE KNIFE GATE VALVE FOR GENERAL INDUSTRIAL AND WATER APPLICATIONS
Knife gate is a bi-directional valve designed for general industrial service applications.
The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Such as
-Wastewater treatment plants
-Chemical plants
-Food and Beverage
Dimensions
DN 50 TO DN 600 (LARGER DIAMETERS ON REQUEST)
WORKING PRESSURE
DN 50 to DN 250: 10 bar
DN 300 to DN 400: 6 bar
DN 450: 5 bar
DN 500 to DN 600: 4 bar
Note: higher working pressures on request.
STANDARD FLANGE CONNECTION
EN1092 PN10
ANSI B16.5 (CLASS 150)
DIRECTIVES
DIR 2006/42/CE (MACHINERY)
DIR 2014/68/EU (PED) FLUID: GROUP 1(B), 2 (CAT. I, MOD. A)
DIR 2014/34/EU (ATEX) CERTIFICATION EN 14432: 2014 TANKS FOR THE TRANSPORT OF DANGEROUS GOODS (UNDER REQUEST)
